Integrate Veeam Information in to the ARTESCA UIΒΆ

This procedure describes how to display Veeam Backup & Replication (VBR) information in the ARTESCA UI by updating and validating Veeam credentials. The information is retrieved using the Veeam REST API.

  1. Log in to the ARTESCA UI.

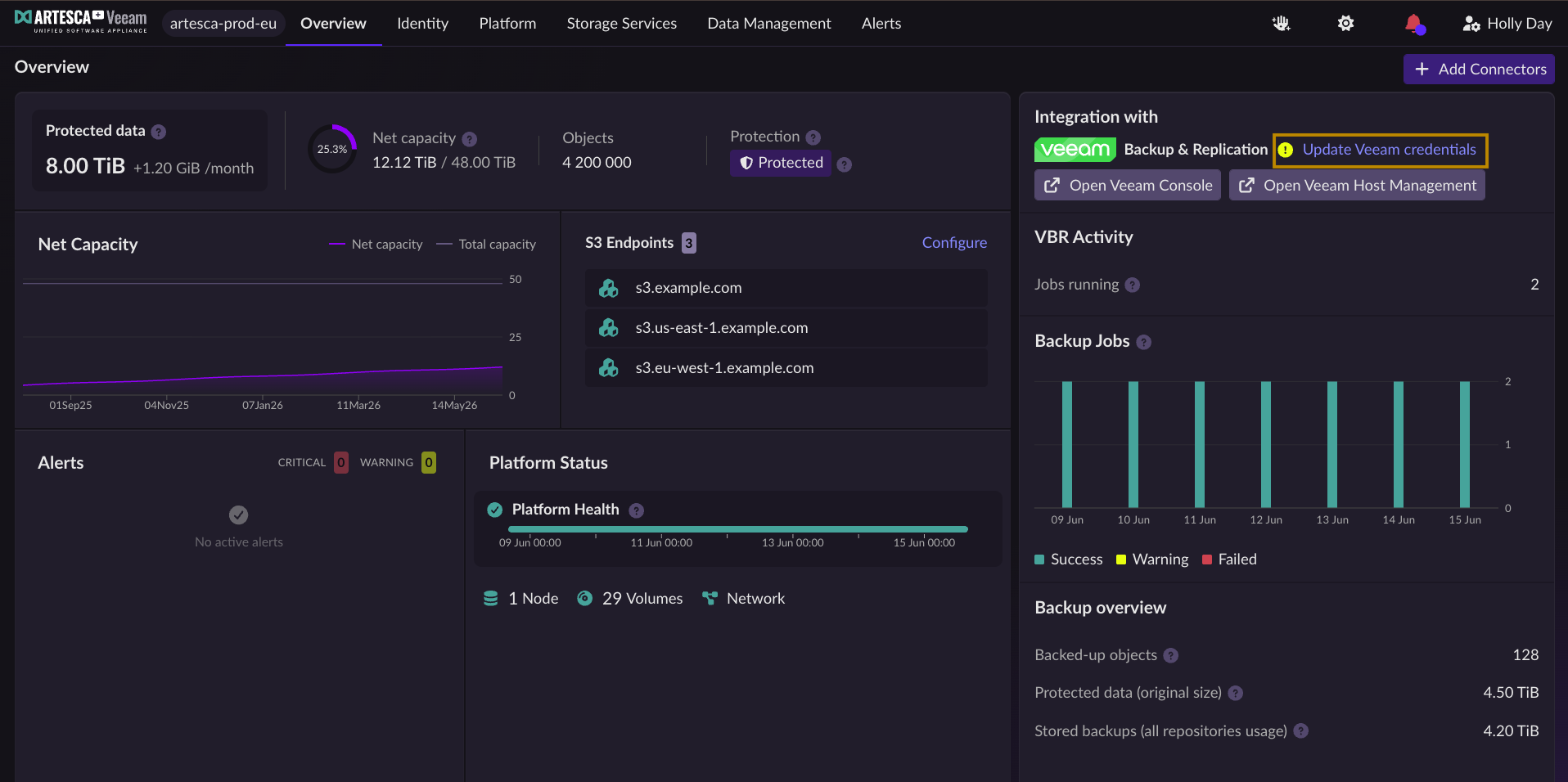

  2. On the Overview page, locate the Integration with Veeam Backup & Replication panel on the right side of the page.

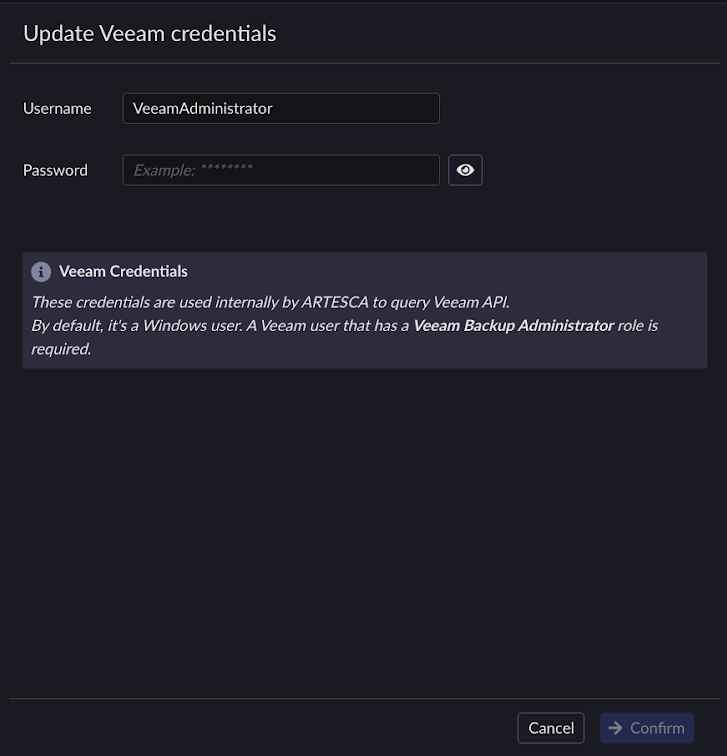

  3. Click Update Veeam credentials. The Update Veeam credentials dialog box displays.

  4. Provide valid Veeam credentials in the respective fields:

    • Username: A Veeam user with the Veeam Administrator role.

    • Password: The password for the Veeam user.

  5. Click Confirm. It can take up to a minute for the credentials to be validated.

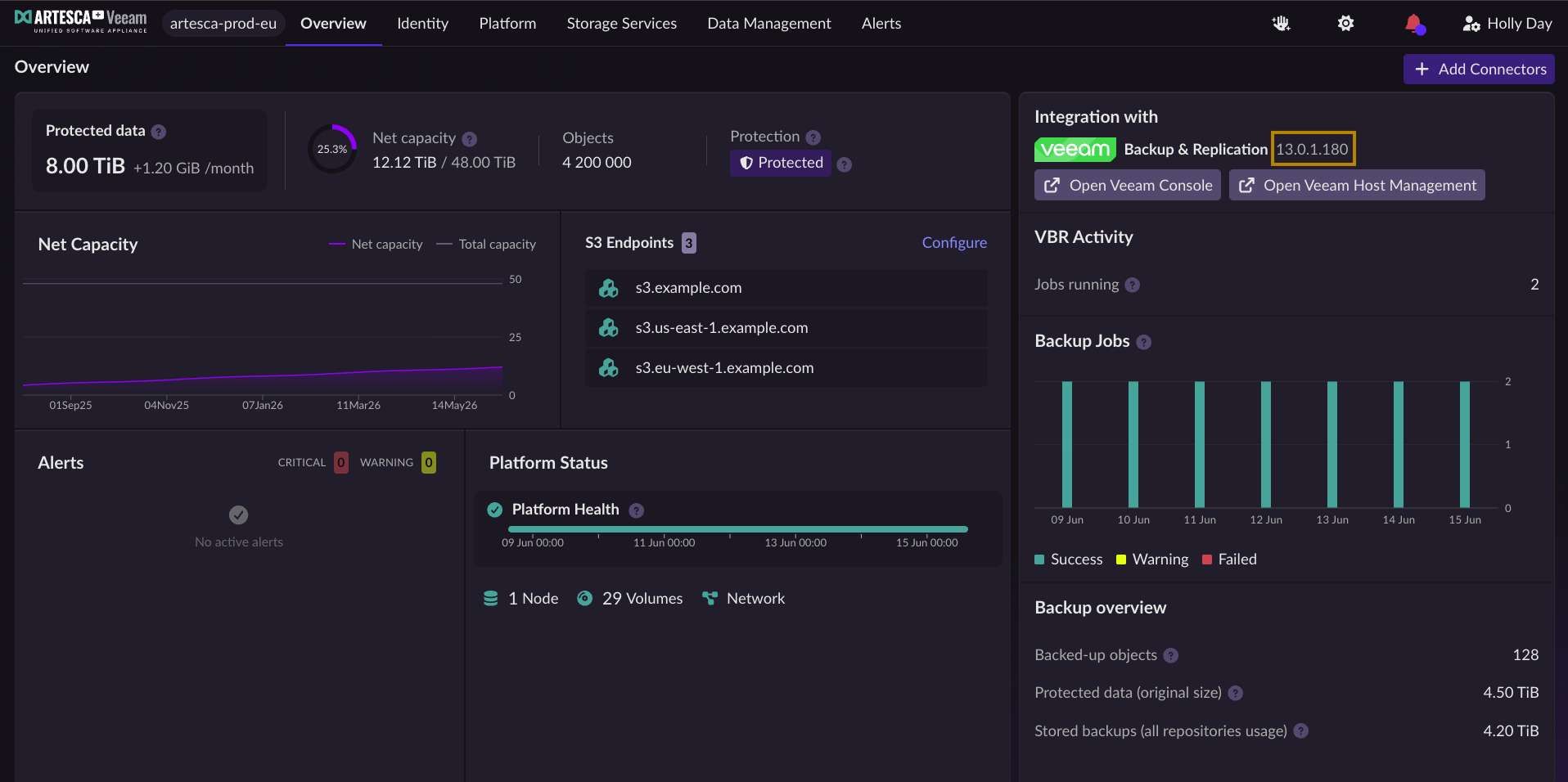

  6. If the credentials are valid, on the Overview page, the Veeam Backup & Replication version is displayed next to the Integration with Veeam Backup & Replication panel.

    Also, you can access the Veeam Overview Metrics from the ARTESCA UI.
