ARTESCA Storage Service Disks are Disabled

Problem Description

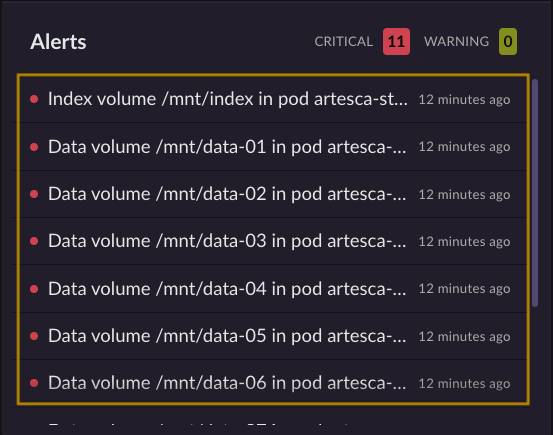

An alert reporting that the cluster is unavailable displays in the Alerts tile of the Overview page.

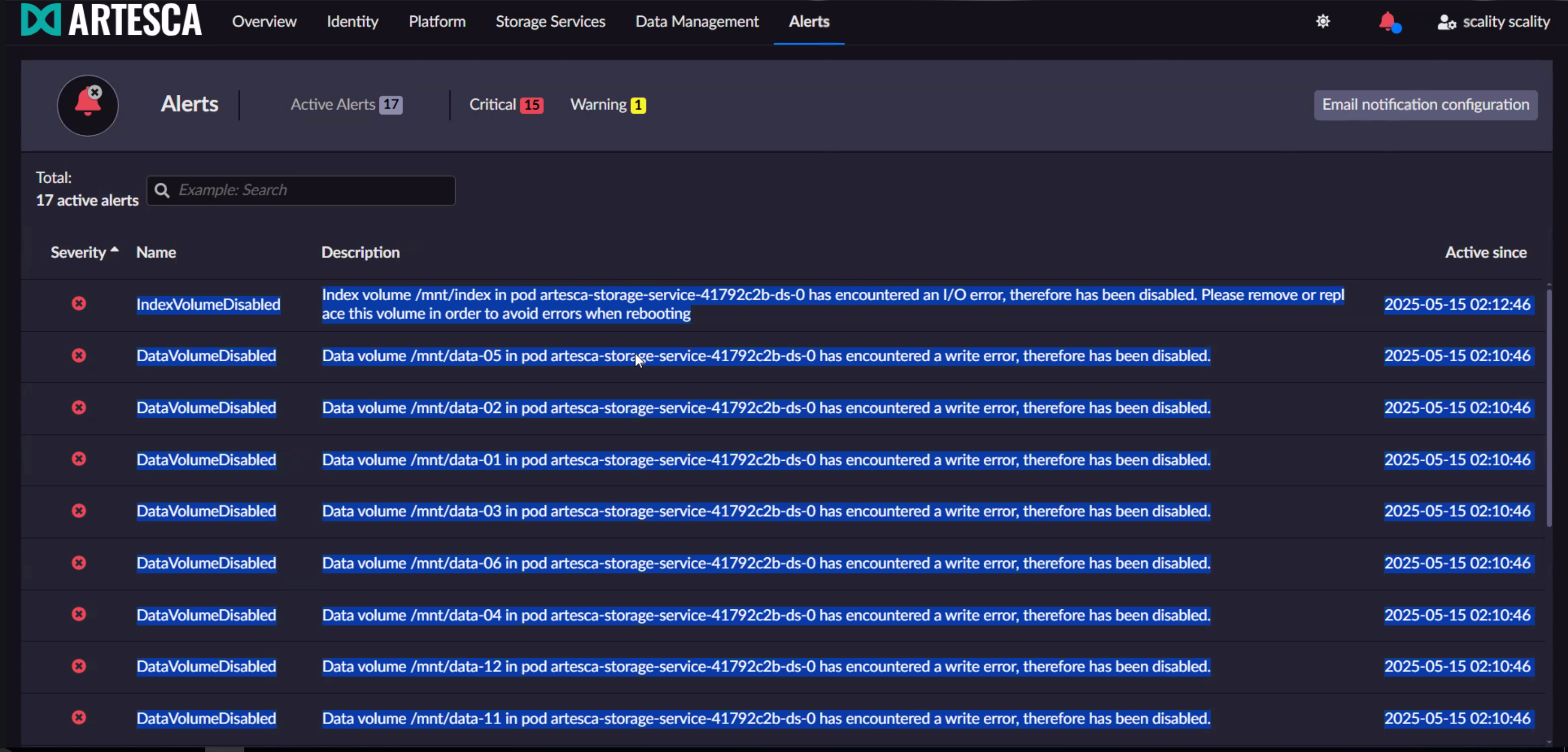

For more information about the alert, open the Alerts menu.

Root Cause

One or more disks have been disabled due to an I/O error during a write operation. This can be seen in the alerting dashboard.

On a hardware environment

An I/O error during a write operation leads to disk deactivation and the data is rebuilt on the remaining healthy drives. This can be due to:

• An unhealthy disk. In that case, you have to replace the faulty disk.

• A temporary loss of connectivity to the disk, due to a RAID card failure. One of the symptoms of the RAID card failure is that multiple disks are disabled at the same time, because usually multiple disks are connected to the same RAID card. In that case, you have to re-instate the disk. Contact Scality Support for assistance.

On a Virtual Machine environment

An I/O error during a write operation can indicate an intermittent connectivity issue to the underlying storage. In that case, the drive is temporarily deactivated, but the data is not rebuilt on the remaining drives. The administrator can check that the write I/O error has been transient, and then re-activate the drive, or deactivate it permanently by following the procedure below.

Investigation Steps

Check the health of the physical disks, and their connectivity to the virtual machine.

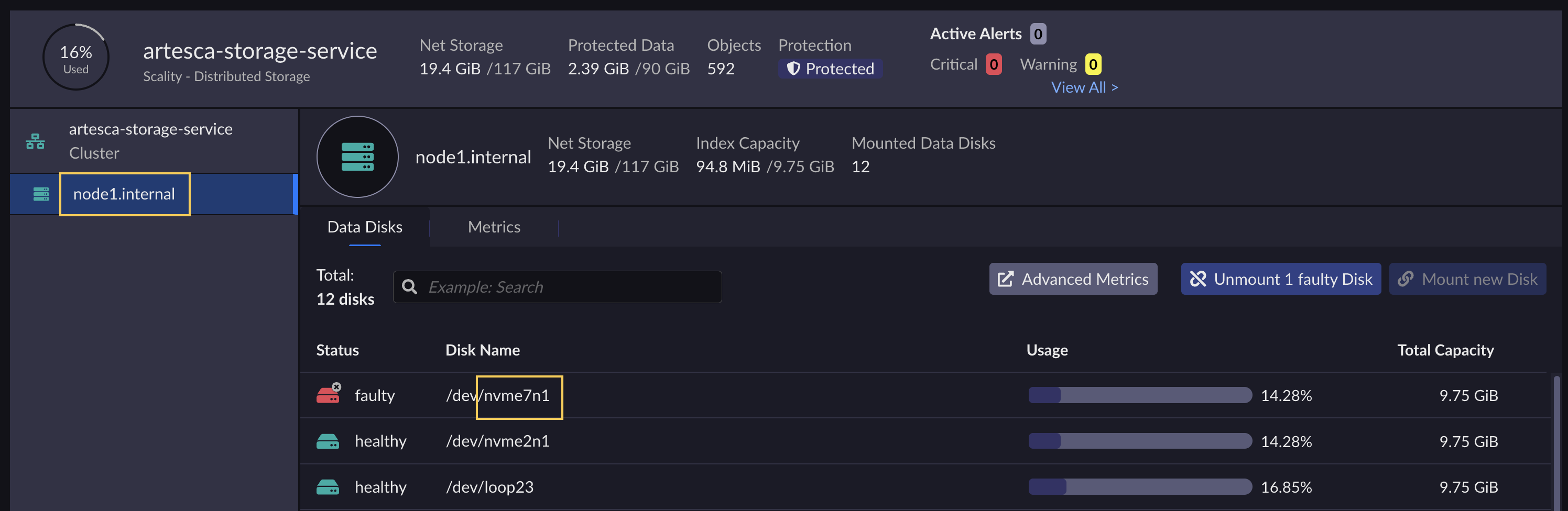

To view all disabled disks from a node (with a red status):

1. Click the Storage Services menu.

2. Click the node name in the left panel to view its disks.

3. Disabled disks (with a red status) will appear at the top of the disk list for that node.

4. Note the node name and disk device name for each disabled disk that needs to be re-enabled.

Problem Resolution

Before proceeding with the following procedure, ensure that:

• Disks are healthy and properly connected.

• Your system is deployed with a Virtual Machine profile.

1. Identify the name of the node and the disk name.



2. Here, the identified node name is node1.internal and the disk name is nvme7n1.

3. Generate the script to enable the disk.

   [artesca-os@bootstrap ~]$


   cat > enable_disk_vm.sh << 'EOF'
   #!/bin/bash

   # Script to map a disk device to its storage service volume name for repair
   # Usage: ./enable_disk_vm.sh <node_name> <disk_device>
   # Example: ./enable_disk_vm.sh node1.example.com sda

   set -e

   # Check if parameters are provided
   if [[ $# -ne 2 ]]; then
       echo "Usage: $0 <node_name> <disk_device>"
       echo "Example: $0 node1.example.com sda"
       exit 1
   fi

   NODE_NAME=$1
   DISK_TO_REPAIR=$2

   # Set KUBECONFIG for all kubectl commands
   export KUBECONFIG=/etc/kubernetes/admin.conf

   # Find dataservice by node name
   DATASERVICE=$(sudo kubectl -n xcore get dataservices -o jsonpath='{range .items[*]}{.spec.nodeName}___{.metadata.name}{"\n"}{end}' | grep "${NODE_NAME}___" | awk -F'___' '{print $2}')

   if [[ -z "$DATASERVICE" ]]; then
       echo "Error: Could not find dataservice for node $NODE_NAME"
       echo "Available node to dataservice mappings:"
       sudo kubectl -n xcore get dataservices -o jsonpath='{range .items[*]}{.spec.nodeName} -> {.metadata.name}{"\n"}{end}'
       exit 1
   fi

   # Step 1: Get Metalk8s volume name for device
   VOLUME=$(sudo kubectl get volumes -o jsonpath='{range .items[*]}{.status.deviceName}___{.metadata.name}{"\n"}{end}' | grep "${DISK_TO_REPAIR}___" | awk -F'___' '{print $2}')

   if [[ -z "$VOLUME" ]]; then
       echo "Error: Could not find Metalk8s volume for device $DISK_TO_REPAIR"
       echo "Available devices:"
       sudo kubectl get volumes -o jsonpath='{range .items[*]}{.status.deviceName}{"\n"}{end}' | sort | uniq
       exit 1
   fi

   # Step 2: Get PVC name from Metalk8s volume
   PVC=$(sudo kubectl -n xcore get pvc -o jsonpath='{range .items[*]}{.spec.volumeName}___{.metadata.name}{"\n"}{end}' | grep "${VOLUME}___" | awk -F'___' '{print $2}')

   if [[ -z "$PVC" ]]; then
       echo "Error: Could not find PVC for Metalk8s volume $VOLUME"
       exit 1
   fi

   # Step 3: Get xcore volume name from StatefulSet
   STATEFULSET_NAME="${DATASERVICE}-ds"
   XCORE_VOLUME=$(sudo kubectl -n xcore get statefulset "$STATEFULSET_NAME" -o jsonpath='{range .spec.template.spec.volumes[*]}{.persistentVolumeClaim.claimName}___{.name}{"\n"}{end}' | grep "${PVC}___" | awk -F'___' '{print $2}')

   if [[ -z "$XCORE_VOLUME" ]]; then
       echo "Error: Could not find xcore volume name for PVC $PVC in StatefulSet $STATEFULSET_NAME"
       echo "Available PVC mappings in StatefulSet:"
       sudo kubectl -n xcore get statefulset "$STATEFULSET_NAME" -o jsonpath='{range .spec.template.spec.volumes[*]}{.persistentVolumeClaim.claimName} -> {.name}{"\n"}{end}'
       exit 1
   fi

   # Enable the disabled disk
   sudo kubectl -n xcore exec -i -t $DATASERVICE-ds-0 -- /usr/bin/enable_disabled_disk $XCORE_VOLUME
   EOF


4. Run the script.

   [artesca-os@bootstrap ~]$


   chmod +x enable_disk_vm.sh
   ./enable_disk_vm.sh node1.internal nvme7n1


5. If successful, the script output must look like the following.

   Output example

   data-XY is disabled, this script will enable it
   enabling data-XY
   done


6. Repeat this procedure for each disabled disk that needs to be re-enabled.

   Note

   If you have multiple disabled disks, you will need to run the script for each one separately, using the appropriate node name and disk device name for each disk.
