Manual OS Partitioning Recovery

Warning

This procedure is only intended when the OS partitioning fails. Refer to OS Disk Partitioning for more information.

During the boot, disks are automatically detected and partitioned. In some rare cases, the detection fails to find suitable disks for the OS installation or the installation fails due to pre-existing partitions on the disks that cannot be wiped automatically.

In such cases, you must manually create the required partitions.

Required Partitions

Partition name

Partition type

Partition usage

Format

Size

/boot

Primary GPT partition 1

Boot loader and kernels

ext4

1 GiB

/boot/efi

Primary GPT partition 2

Boot loader (U)EFI specific

efi

200 MiB

vgos

Primary GPT partition 3

LVM physical volume

Linux LVM

entire disk

/var/lib/containerd

vgos LV name: var_lib_containerd

Container images, metadata, …

xfs

100 GiB

/var/log

vgos LV name: var_log

All logs

xfs

200 GiB

/srv/scality/releases

vgos LV name: srv_scality_releases

ARTESCA artifacts

xfs

50 GiB

/

vgos LV name: root

Everything else

xfs

> 50 GiB

Important

If a swap partition is present, remove it because ARTESCA will disable it and not use this disk space.

Procedure

These procedures allows you to create the above partitions when OS disks have been configured as a single Hardware RAID 1 array, or when 2 OS disks should be configured as a single Software RAID 1.

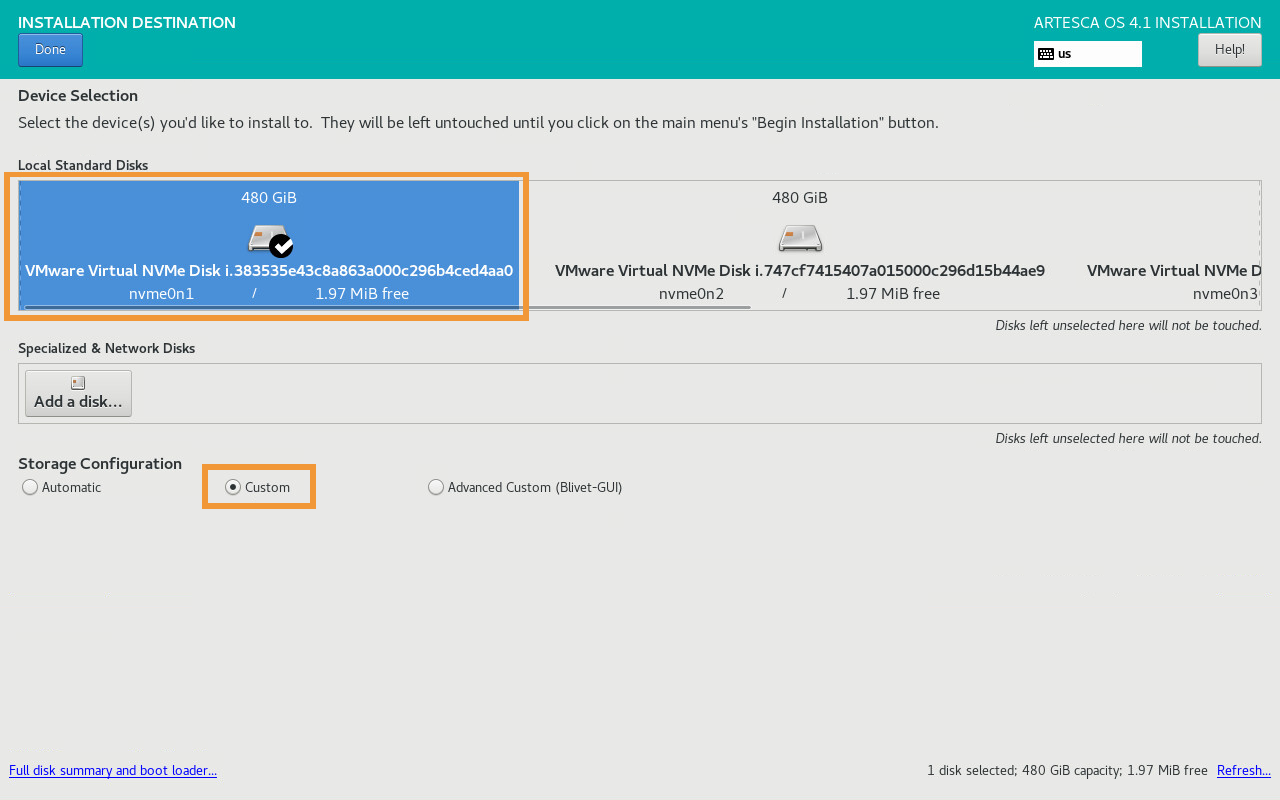

  1. Select the disk to be used for the OS, with a minimum of 447.03 GiB, and the Custom storage configuration. Click Done.

  2. Click + to add a mount point. Select the /boot partition with a 1 GiB capacity and click Add mount point.

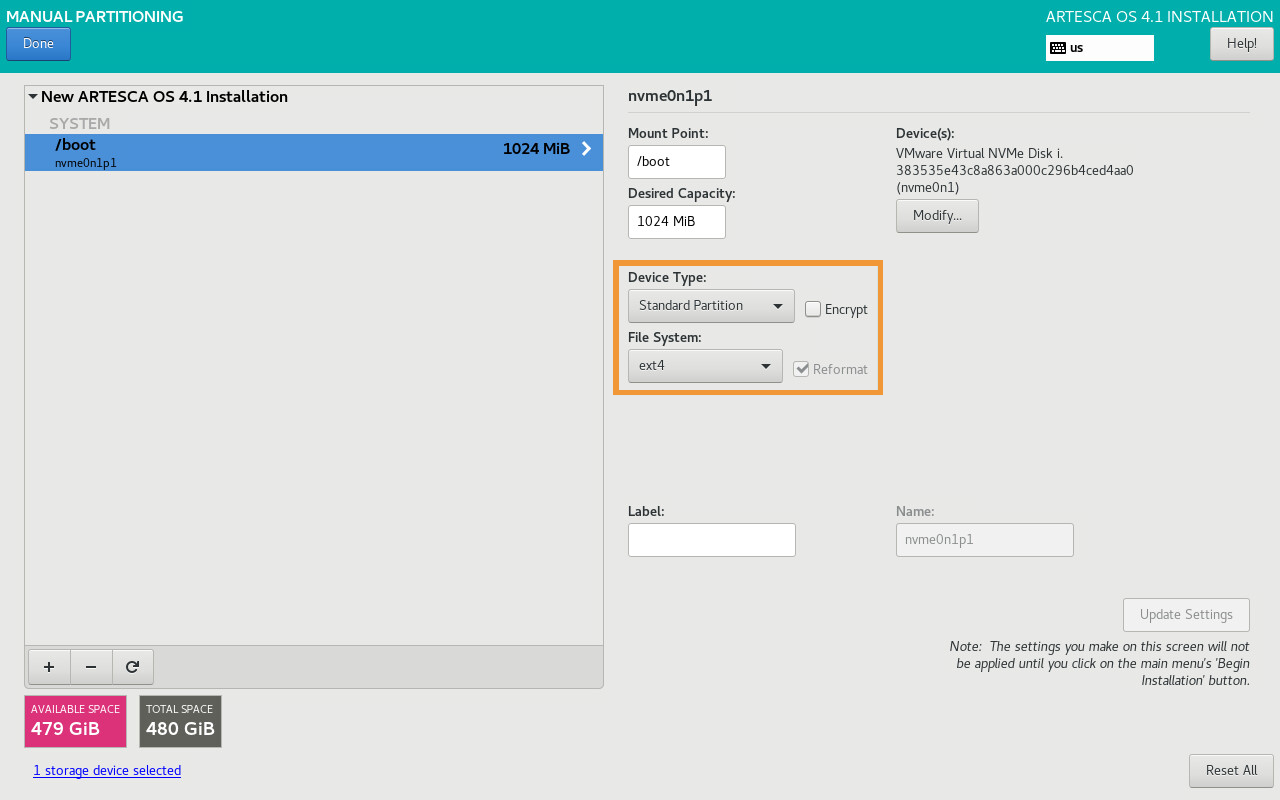

  3. Update the /boot partition settings and click Update Settings.

    • Device Type: Standard Partition

    • File System: ext4

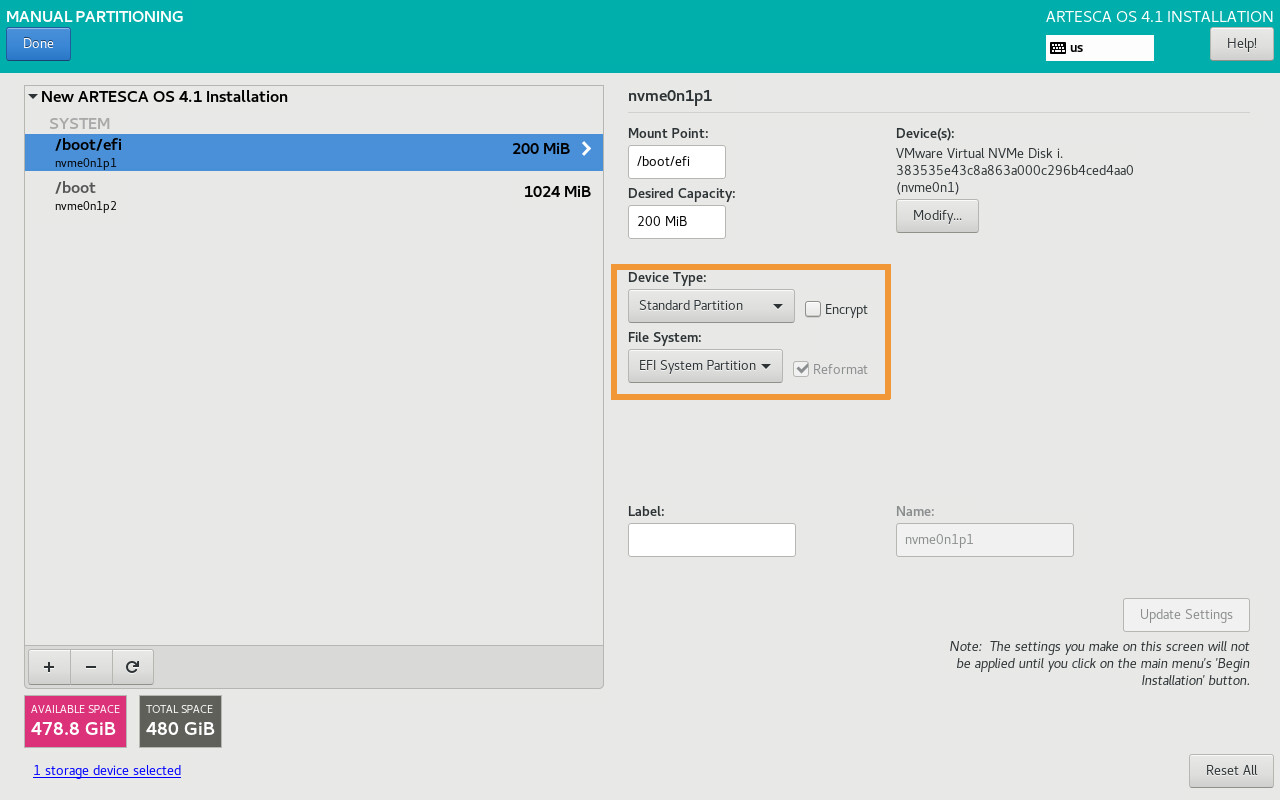

  4. Create the /boot/efi partition with a 200 MiB capacity and update its settings.

    • Device Type: Standard Partition

    • File System: EFI System Partition

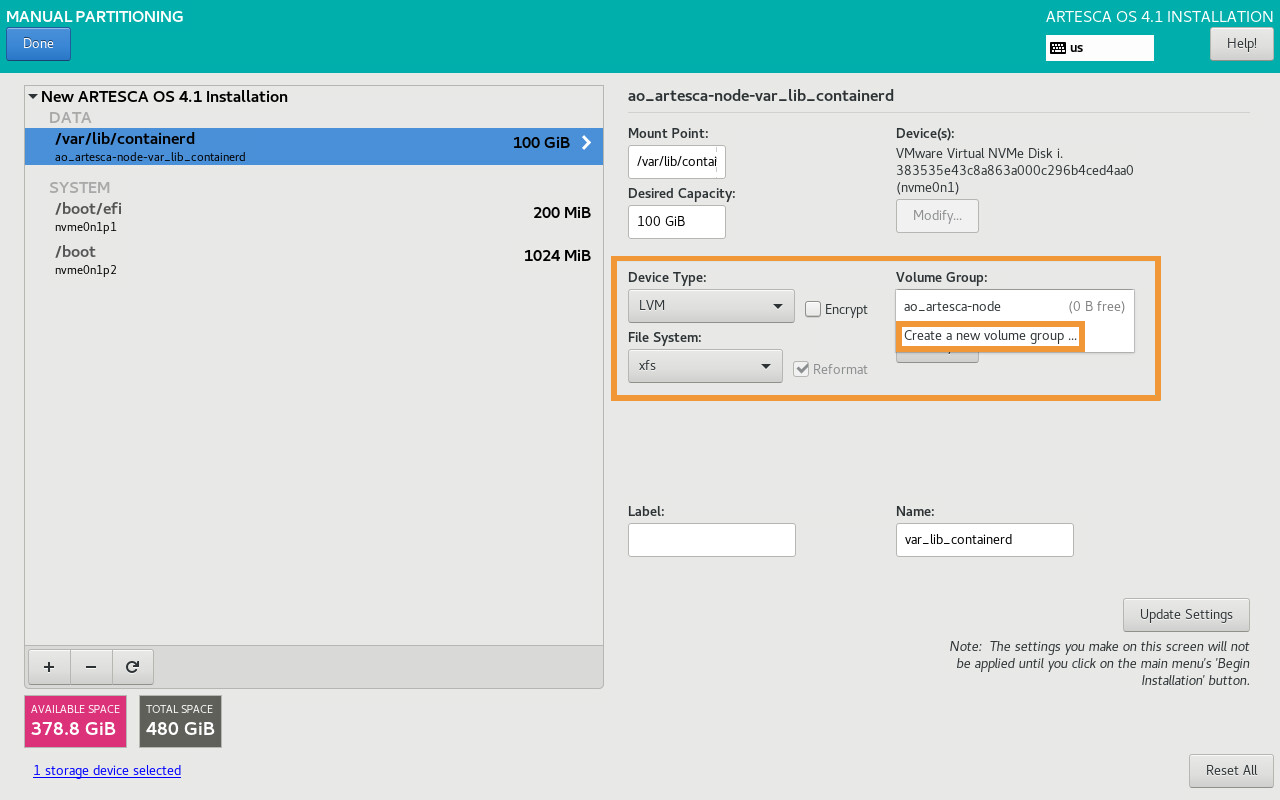

  5. Create the /var/lib/containerd partition with a 100 GiB capacity and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: Click Volume Group and Create a new volume group …

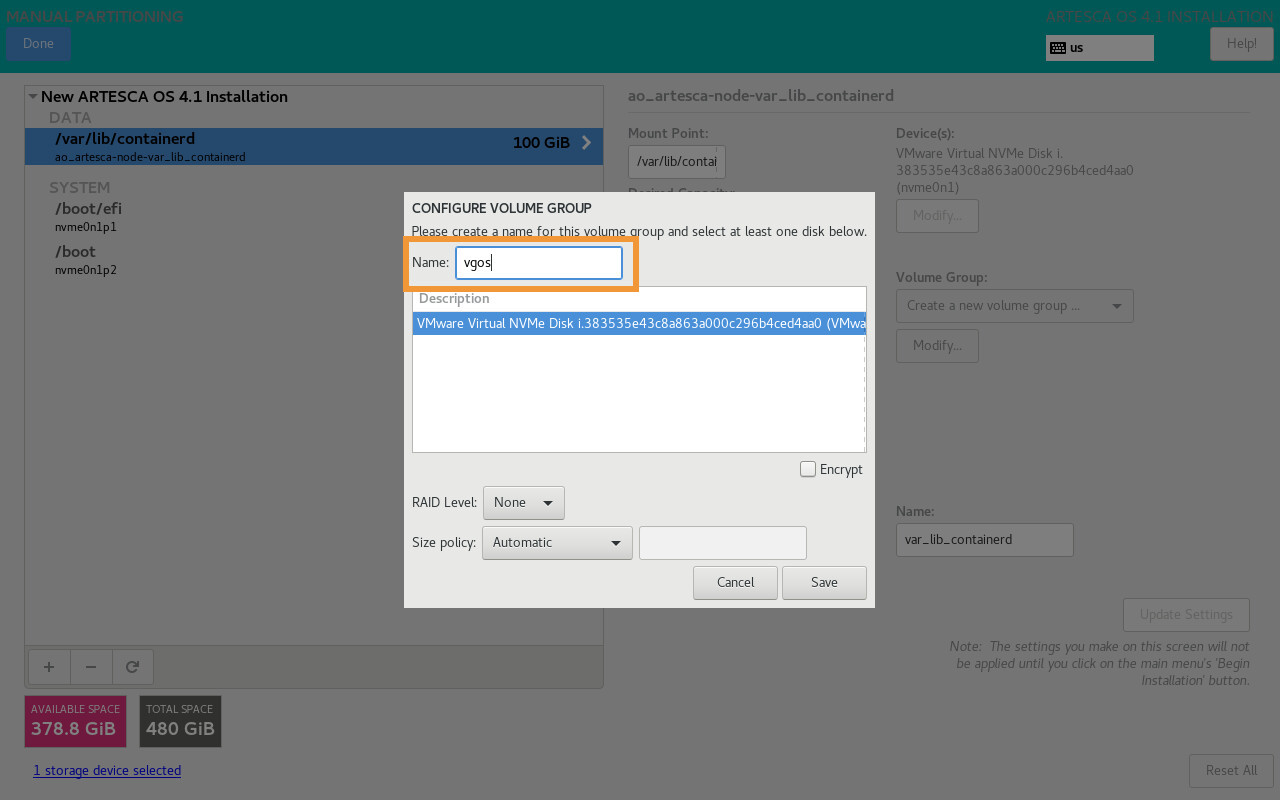

  6. Create and configure the volume group vgos.

    • Name: vgos

    • RAID Level: None

    • Size Policy: Automatic

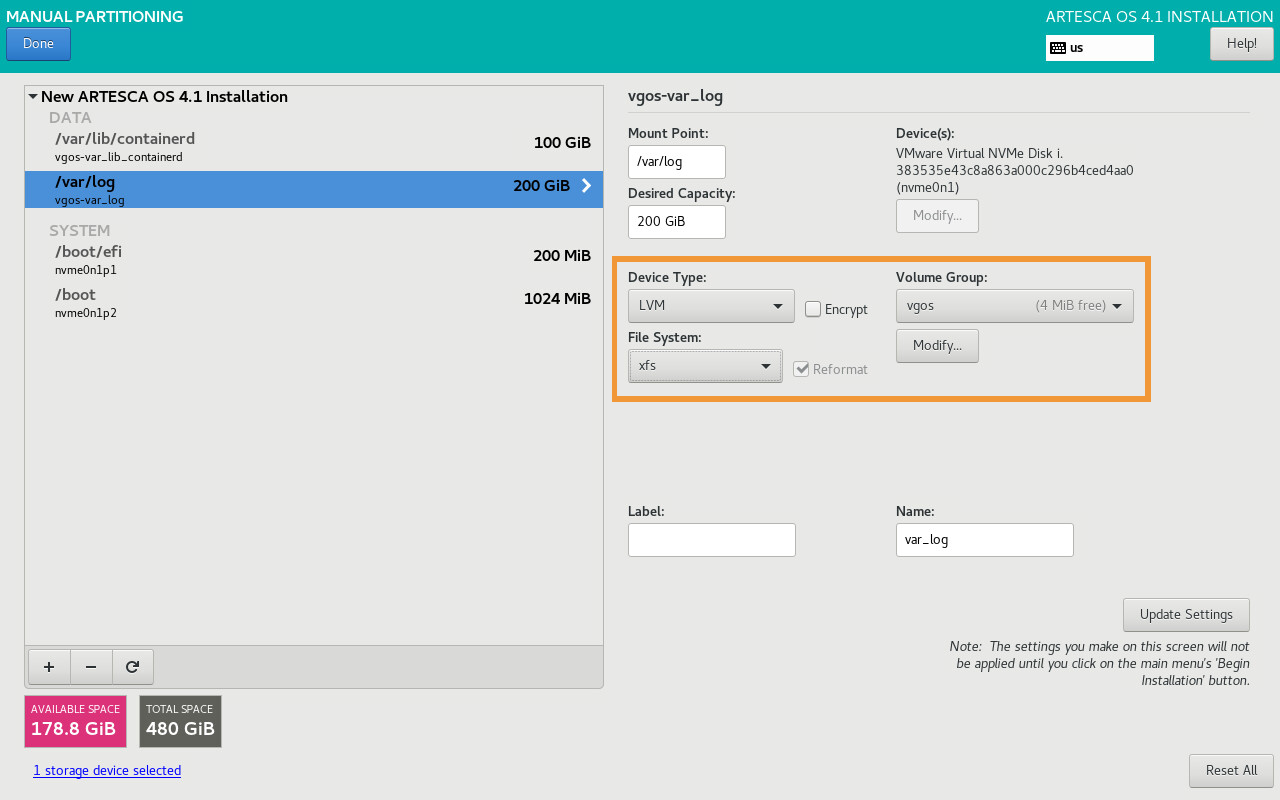

  7. Create the /var/log partition with a 200 GiB capacity and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: vgos

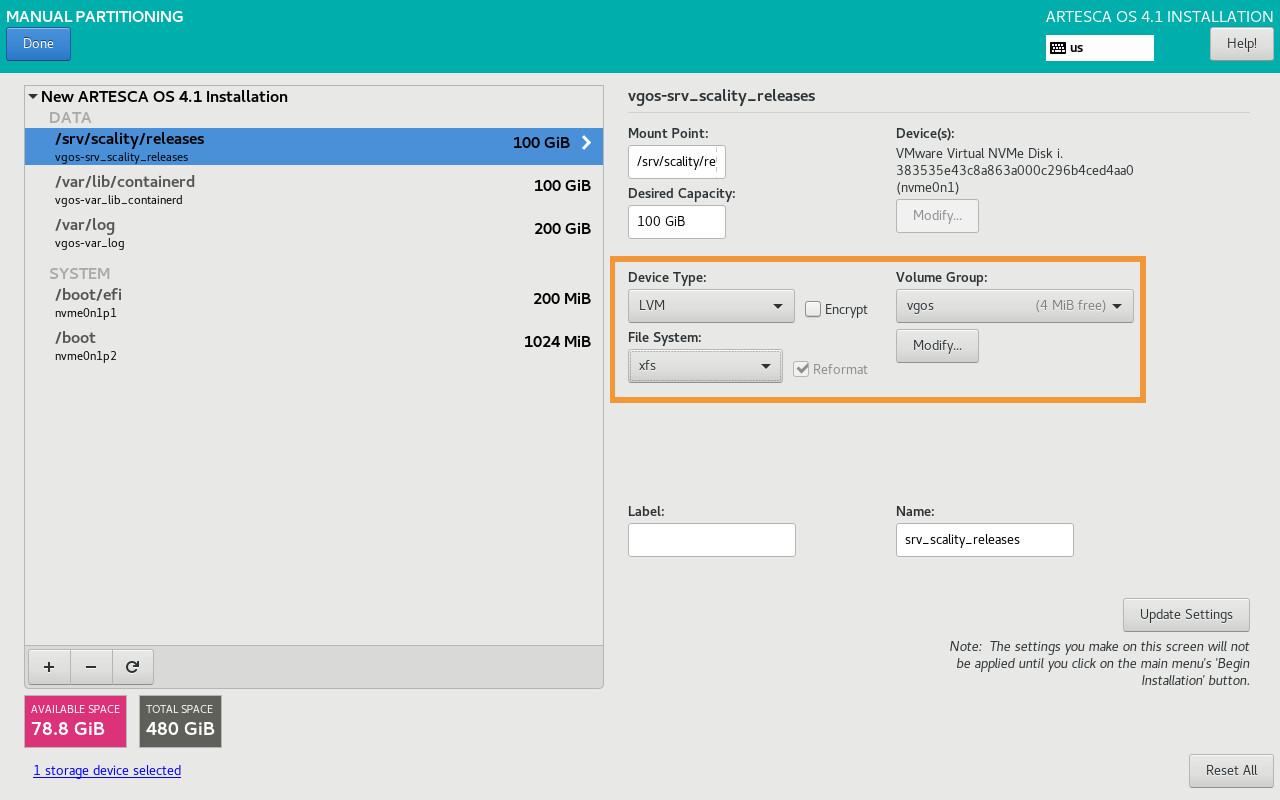

  8. Create the /srv/scality/releases partition with a 100 GiB capacity and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: vgos

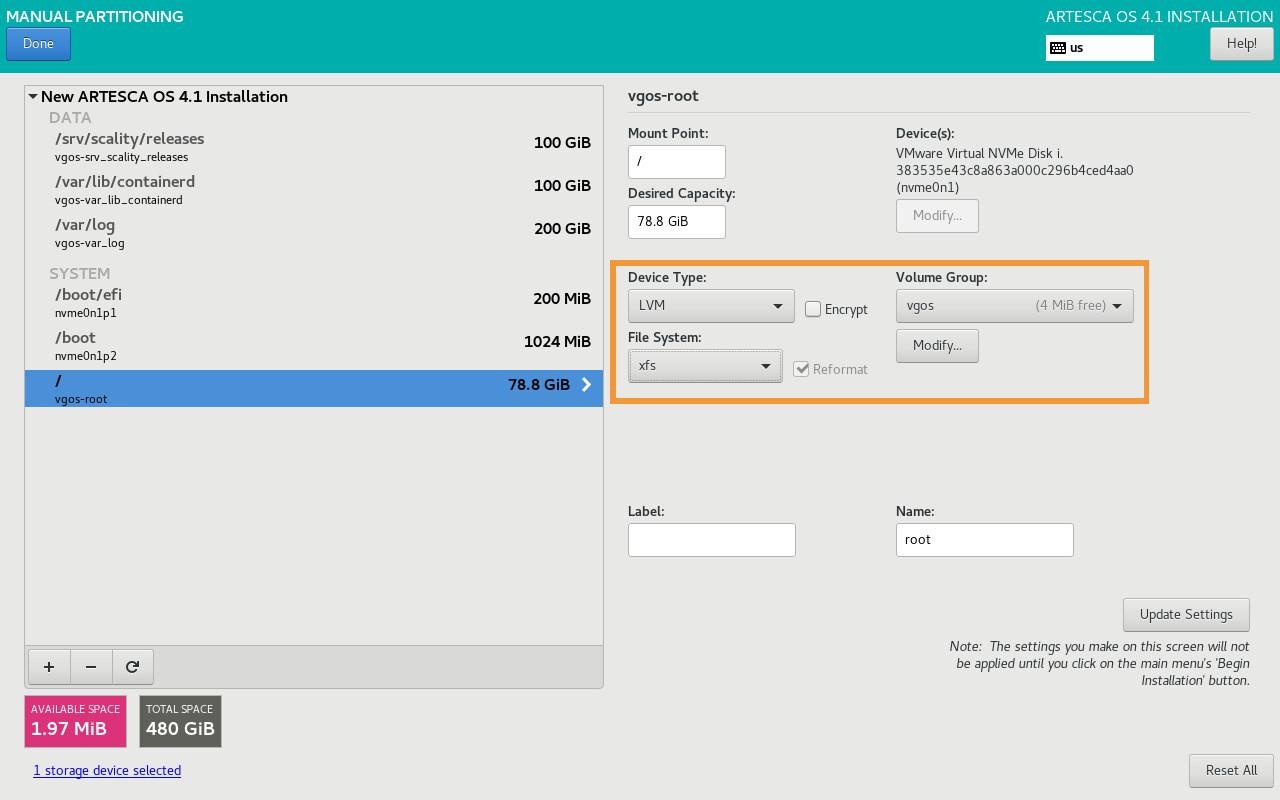

  9. Create the / partition (leave wanted capacity blank to use the remaining available space) and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: vgos

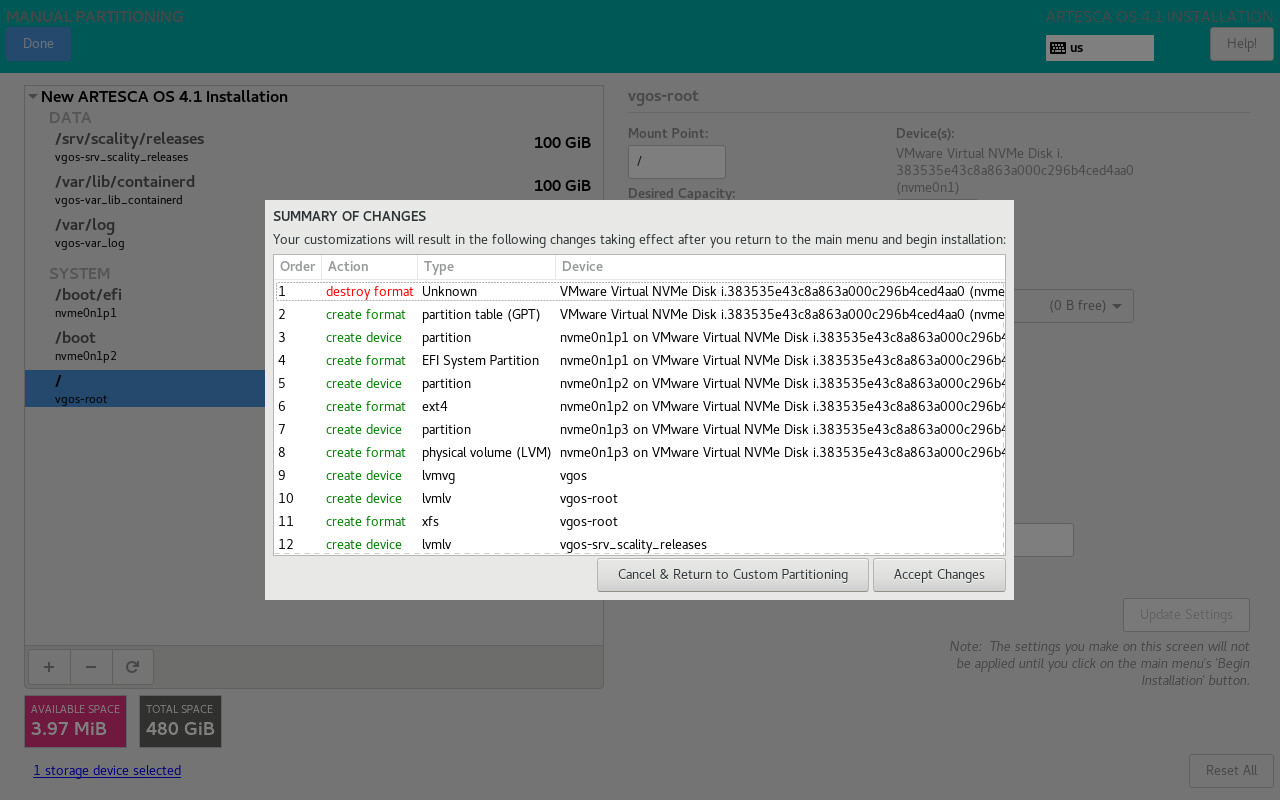

  10. Click Done twice and Accept Changes to apply all changes.

    Note

    No swap partition must be created.

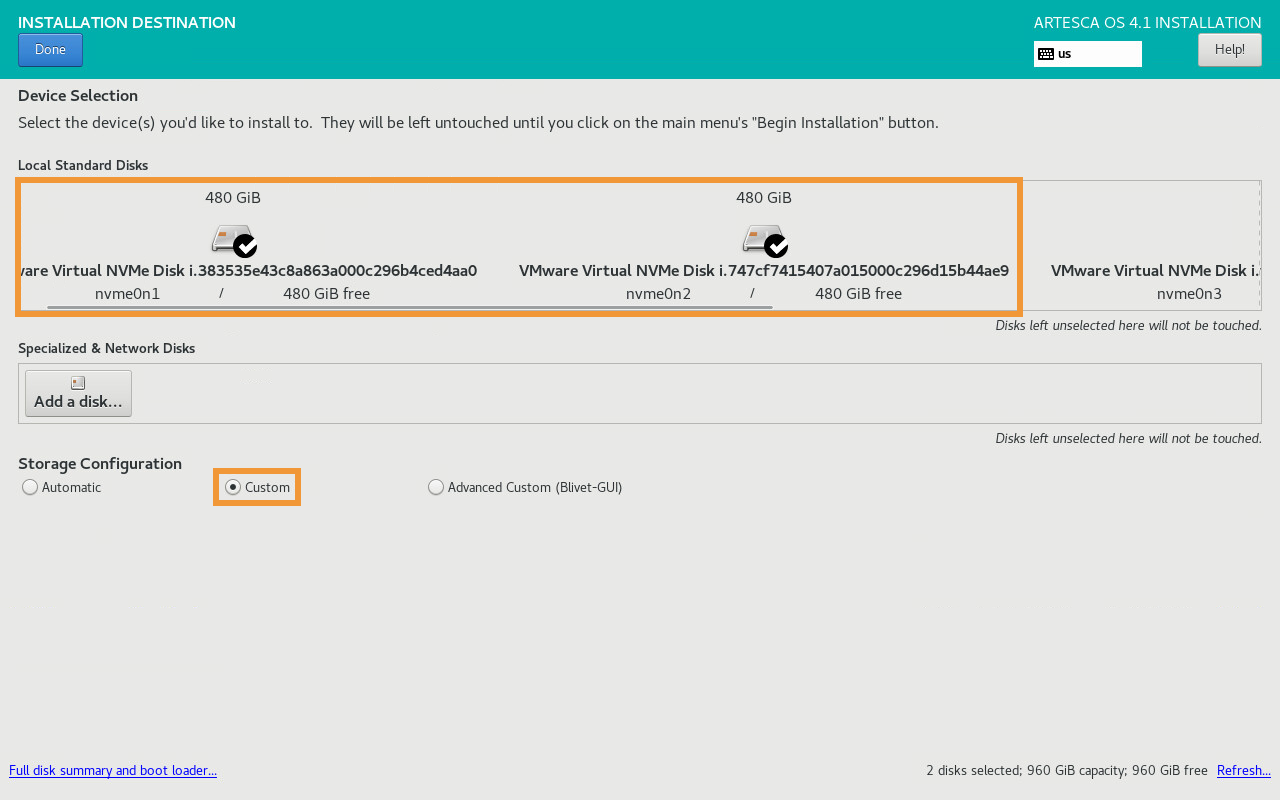

  1. Select the two 447.03 GiB disks and the Custom storage configuration. Click Done.

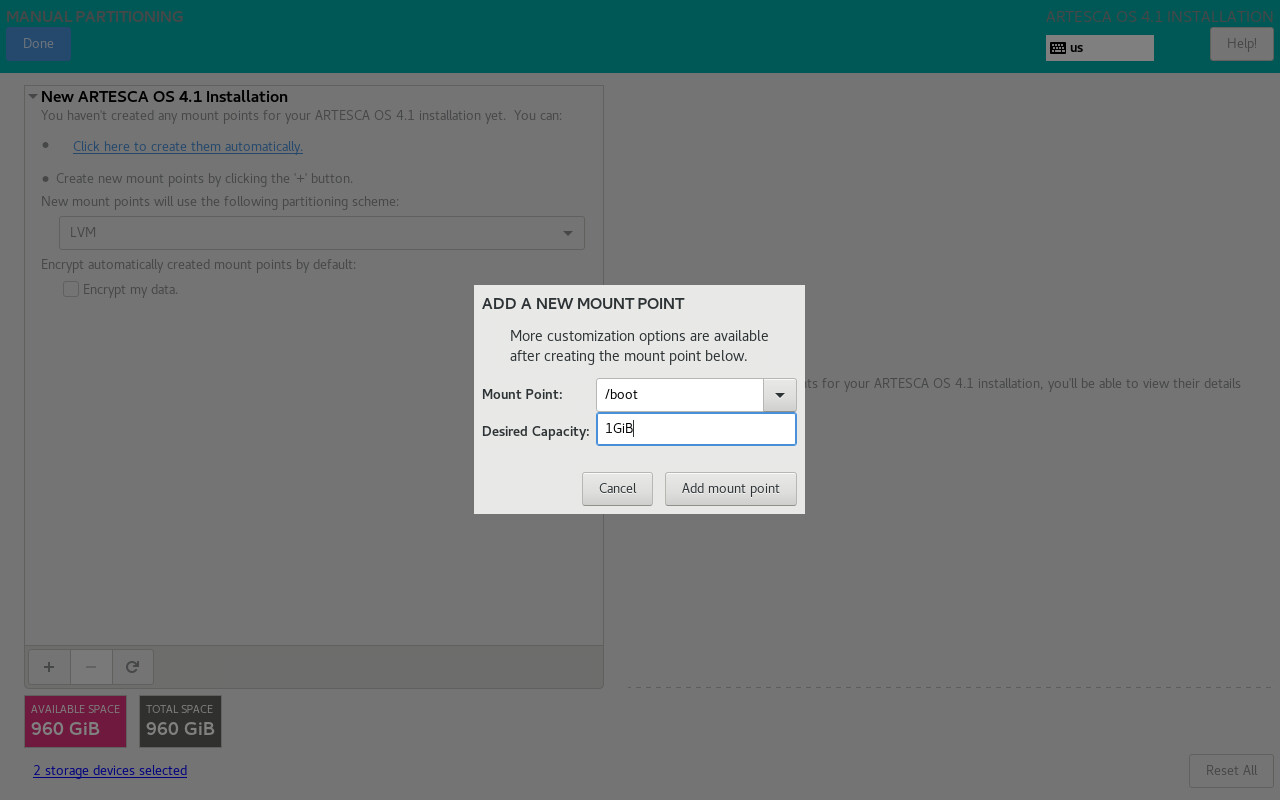

  2. Click + to add a mount point. Select the /boot partition with a 1 GiB capacity and click Add mount point.

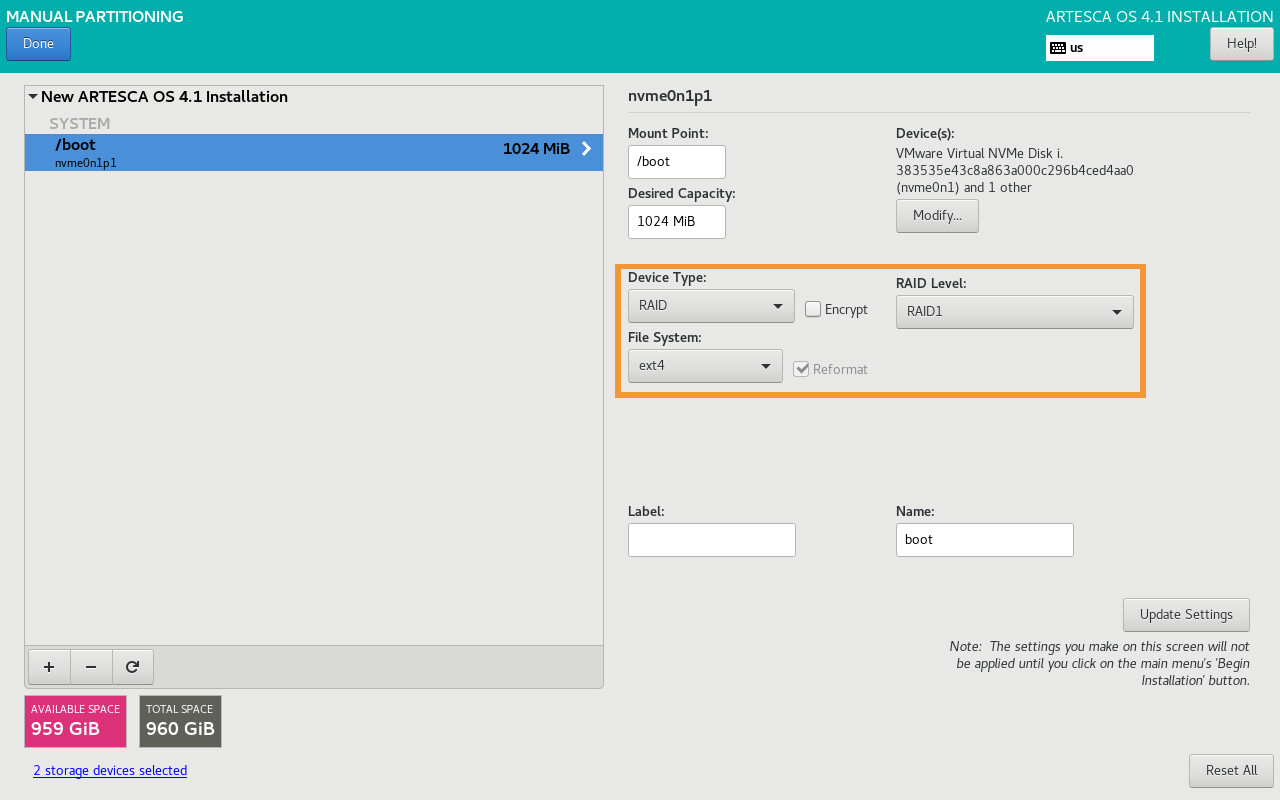

  3. Update the /boot partition settings to use RAID1 and click Update Settings.

    • Device Type: RAID

    • RAID Level: RAID1

    • File System: ext4

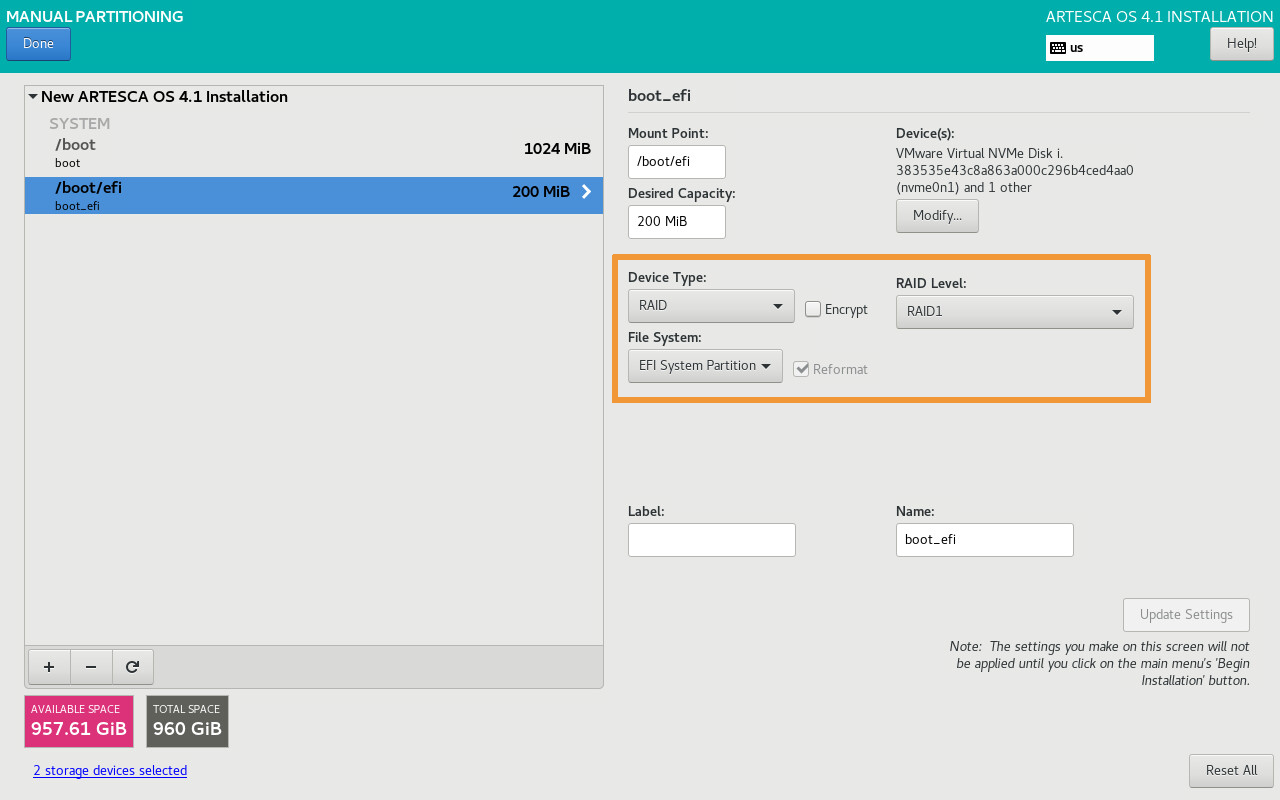

  4. Create the /boot/efi partition with a 200 MiB capacity and update its settings.

    • Device Type: RAID

    • RAID Level: RAID1

    • File System: EFI System Partition

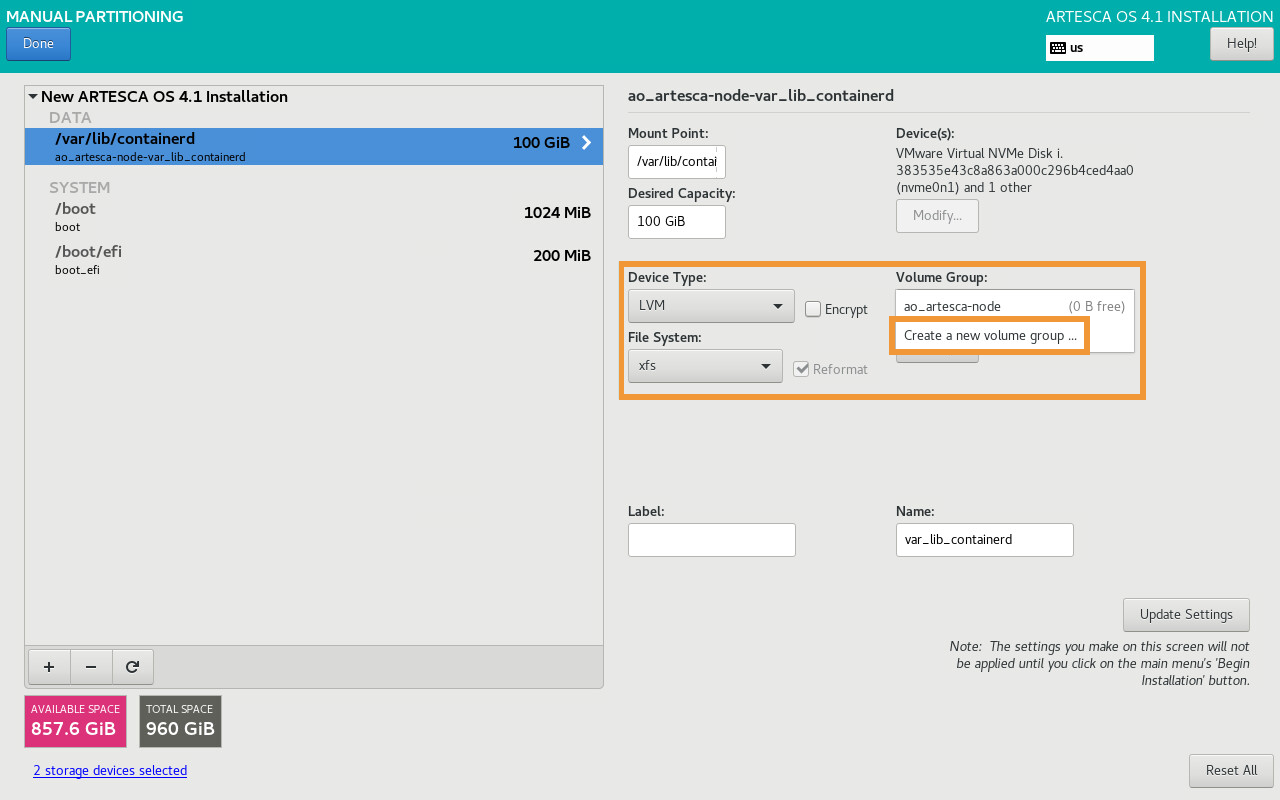

  5. Create the /var/lib/containerd partition with a 100 GiB capacity and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: Click Volume Group and Create a new volume group …

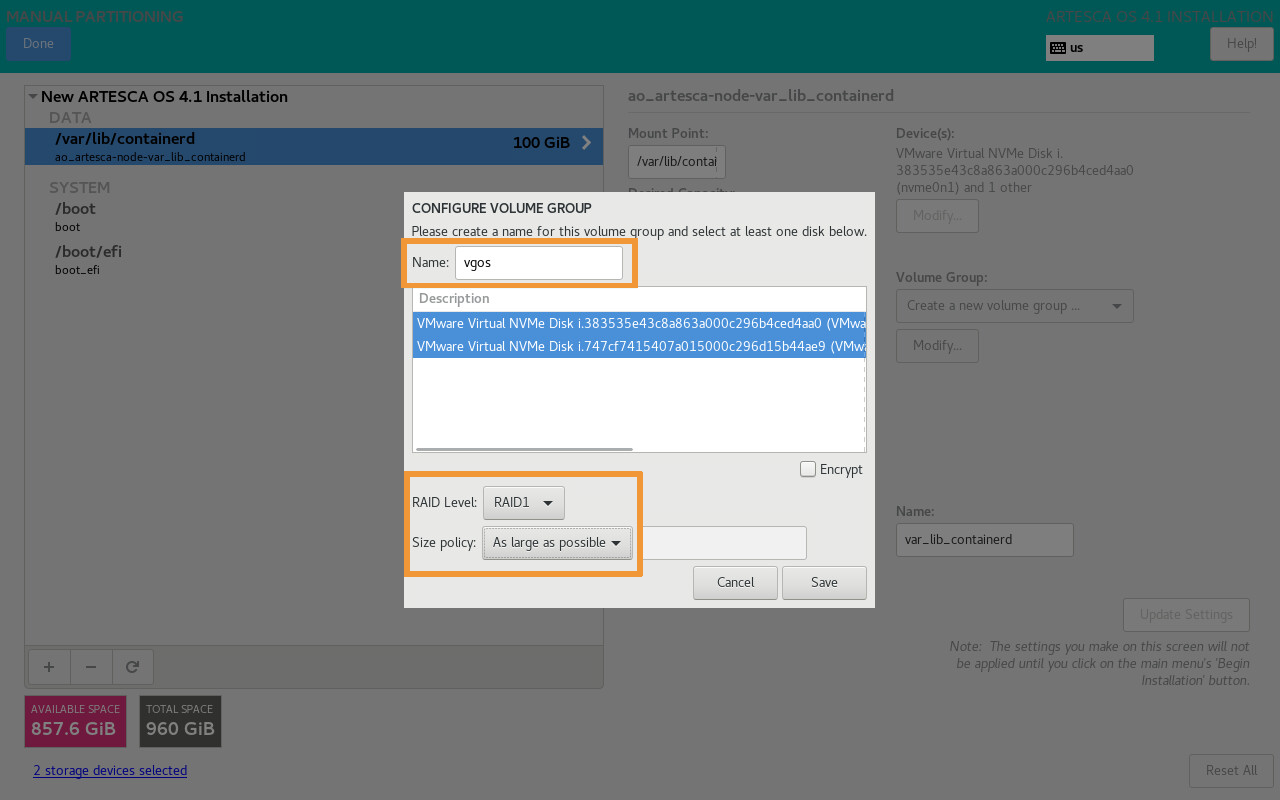

  6. Create and configure the volume group vgos.

    • Name: vgos

    • RAID Level: RAID1

    • Size Policy: As Large as possible

    • Click Save

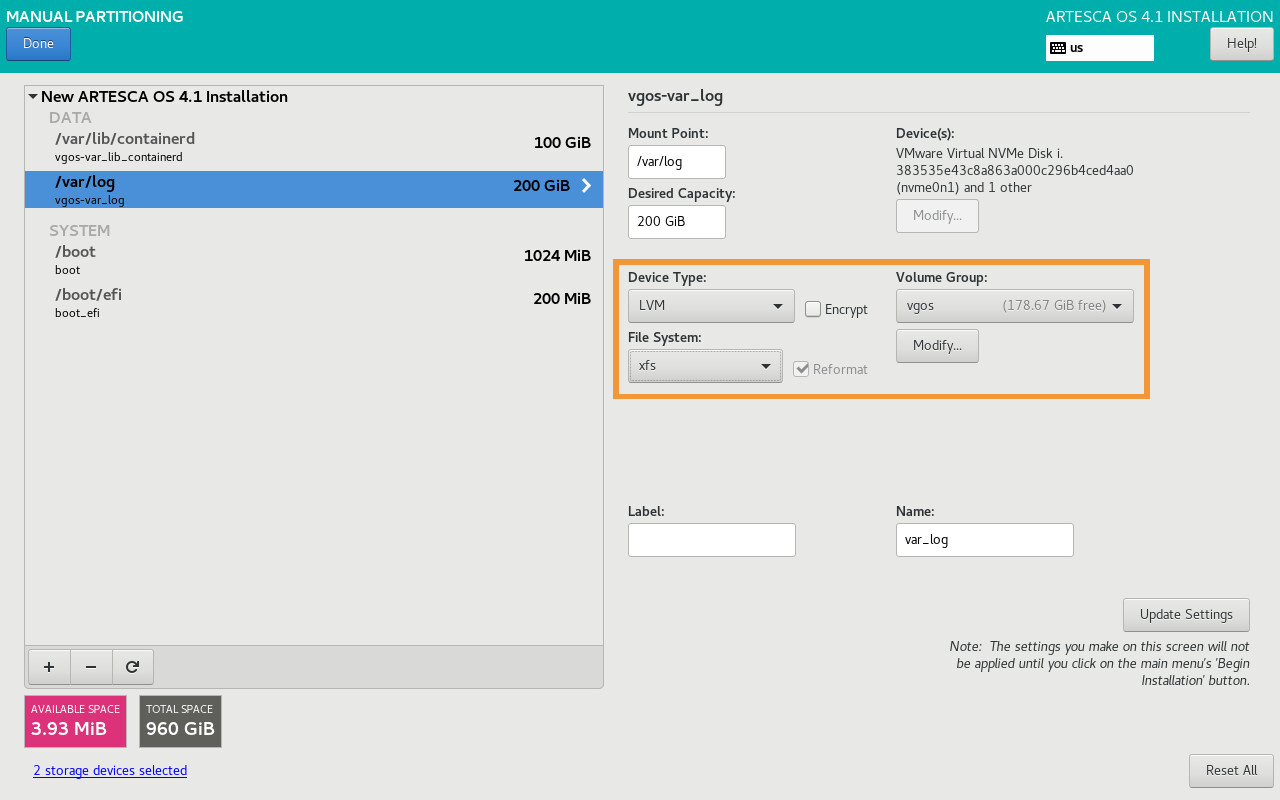

  7. Create the /var/log partition with a 200 GiB capacity and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: vgos

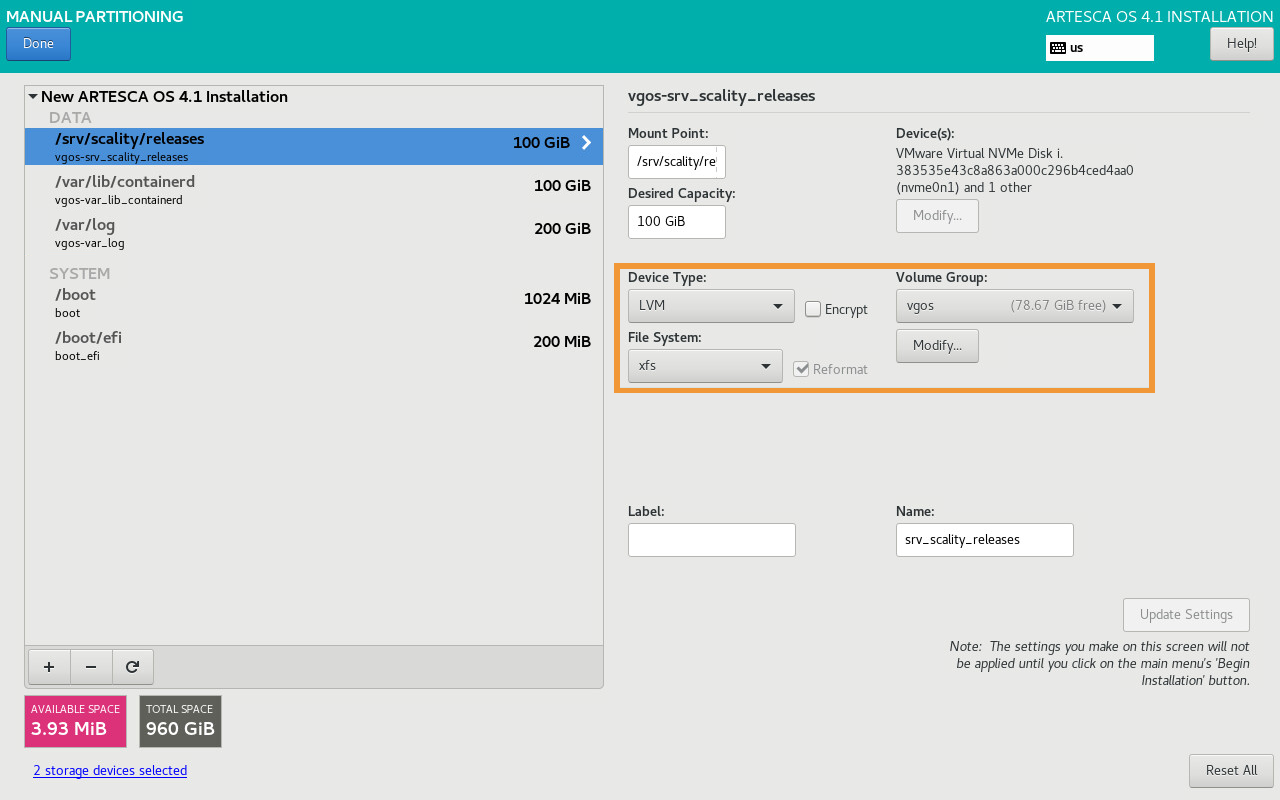

  8. Create the /srv/scality/releases partition with a 100 GiB capacity and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: vgos

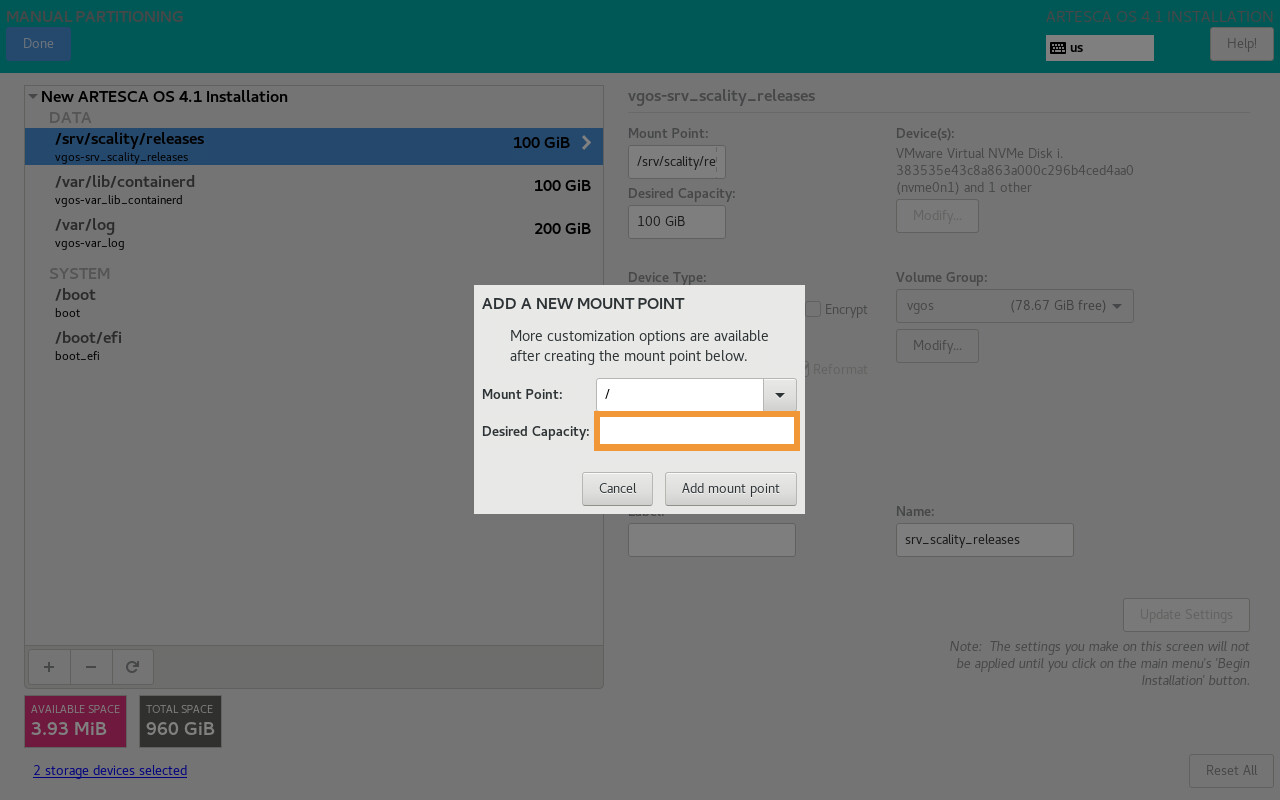

  9. Create the / partition (leave wanted capacity blank to use the remaining available space) and update its settings.

    • Device Type: LVM

    • File System: xfs

    • Volume Group: vgos

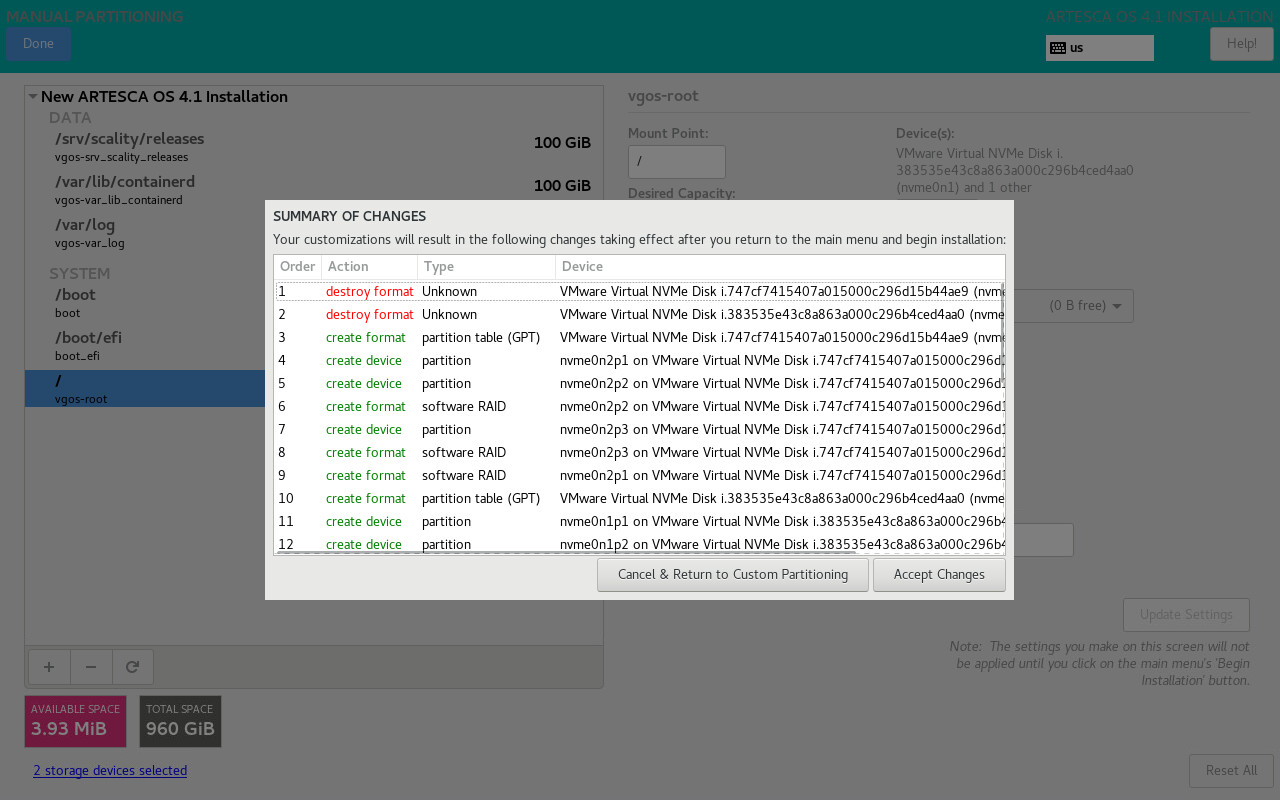

  10. Click Done twice and Accept Changes to apply all changes.

    Note

    No swap partition must be created.

Resume the OS install with Installation Summary.
